RiskSpectrum ModelBuilder

A unique risk- and reliability platform


RiskSpectrum ModelBuilder

RiskSpectrum ModelBuilder is a software tool for

  • creating and…
  • maintaining risk-, reliability- and availability models

It is a workbench for non-experts to carry out advance analyses making it possible to model your system close to its design. It provides a closer link between your system and the safety model (digital twin)

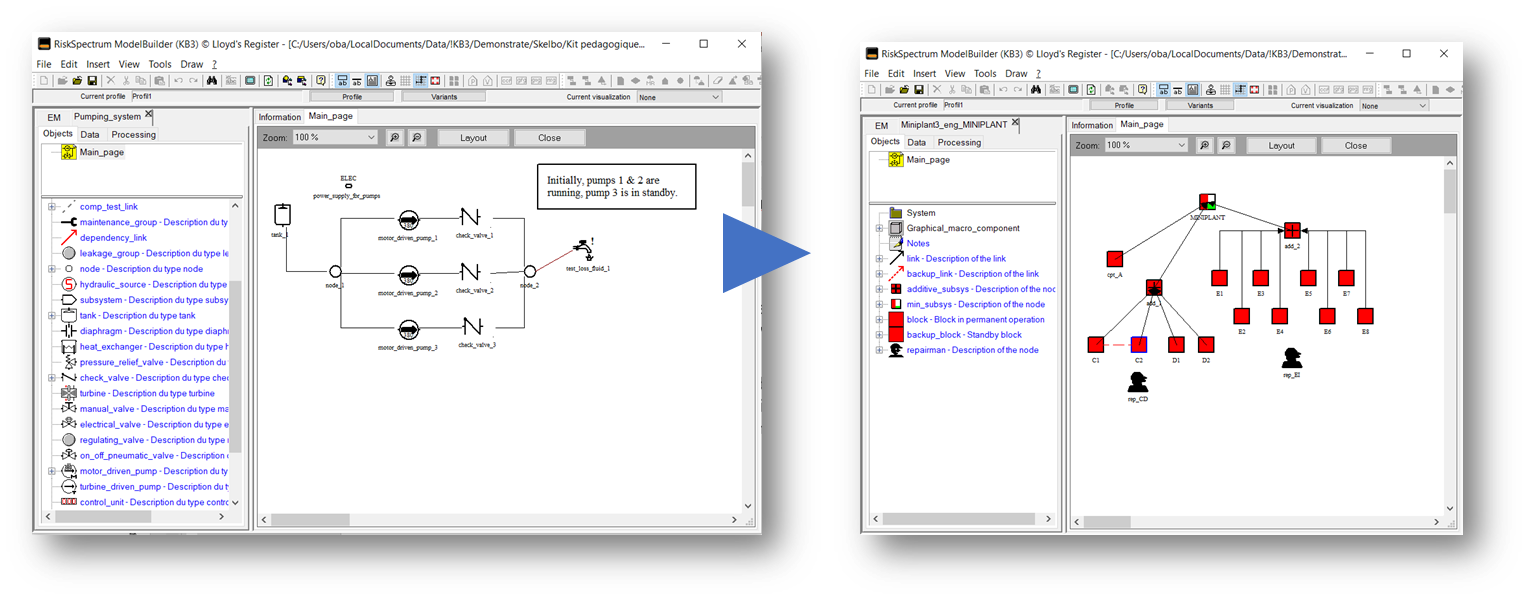

PumpingSystemSample



Software In Action



Standardise

Create a single, central repository of asset properties and risk models that everyone can use.

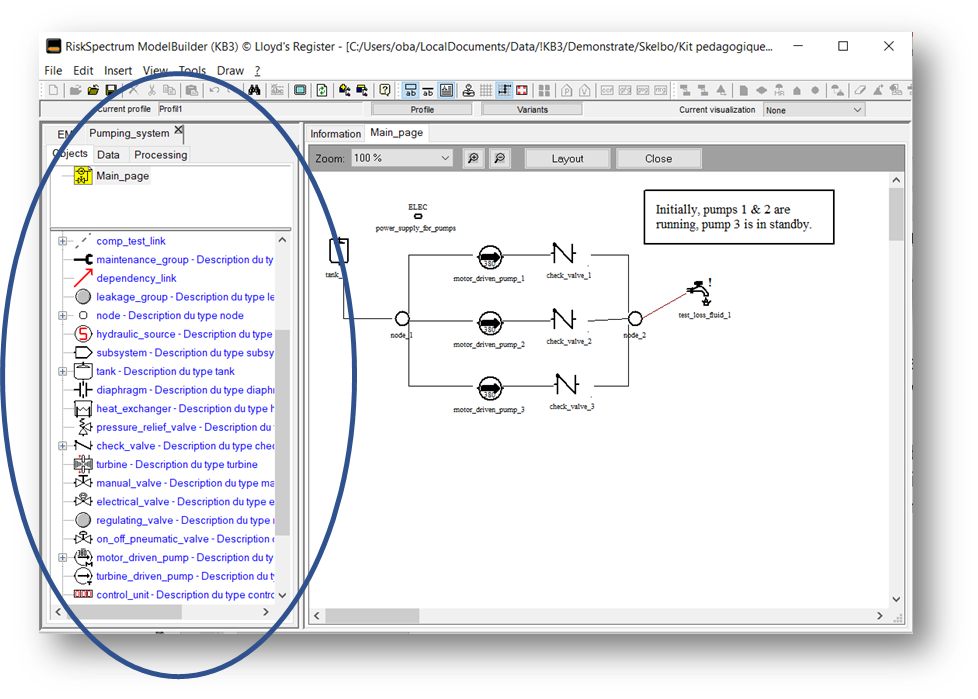

Systems, equipment and their functional properties are defined and maintained in the ModelBuilder´s Knowledge Base (KB)

The KB is like a template for equipment and systems

E.g. for a pump:

  • Failure modes
  • Reliability data
  • Configurations
  • Dependencies (power supply, signal system, etc)

KB&PumpingSystemSample-1



Accelerate

Build and update risk and reliability models faster using RiskSpectrum ModelBuilder’s graphical user interface.

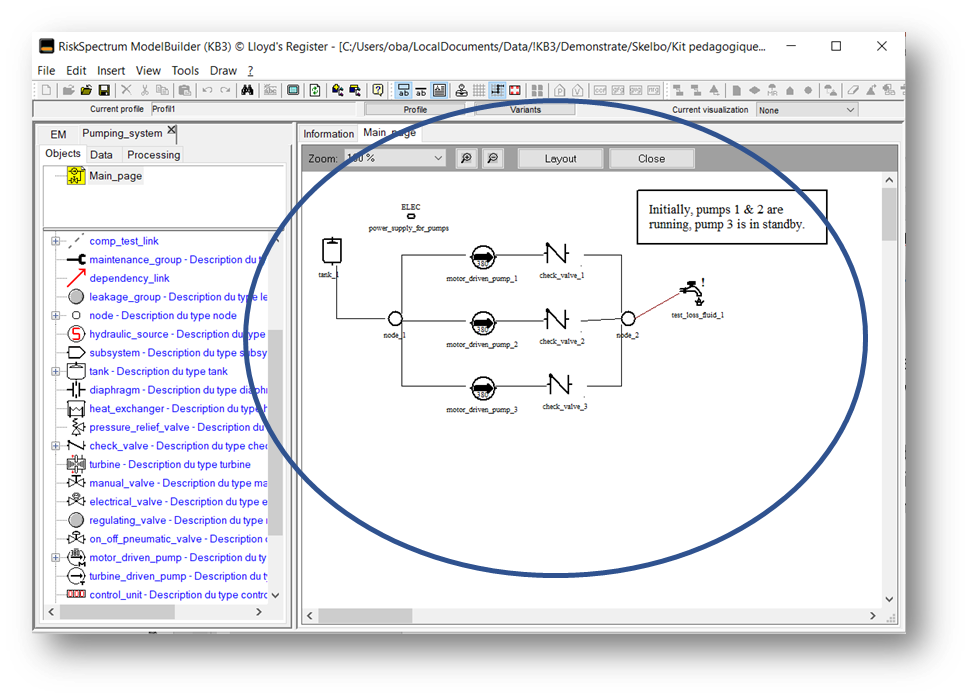

The ModelBuilder´s graphical user interface is used for creating/importing drawings, (e.g. P&ID, I&C, electrical single line diagram, etc) by pulling in objects defined in the Knowledge Base





Graphical PumpingSystemSample



Automate

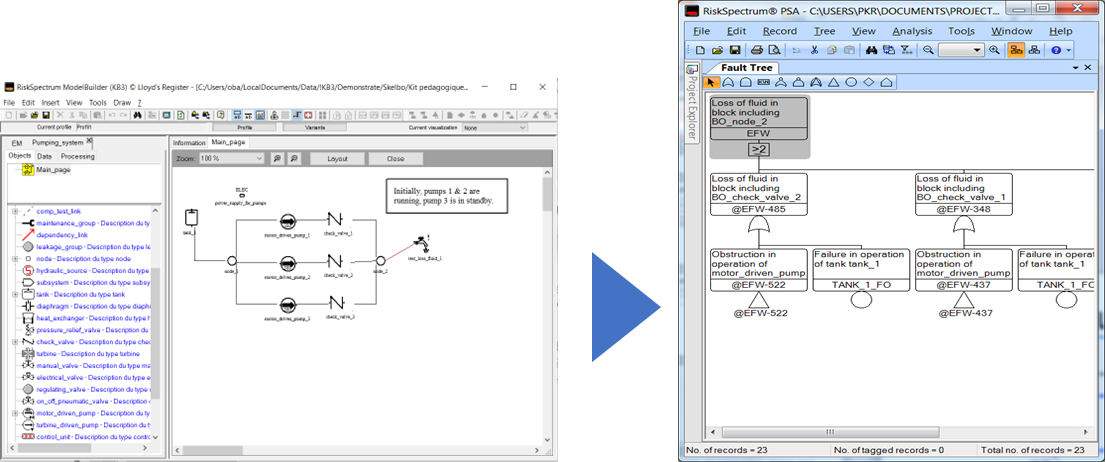

Fault trees are automatically generated from the ModelBuilder and exported to RiskSpectrum PSA

Generate FT



Automate

Run the built-in Monte Carlo simulation tool YAMS to calculate your system's reliability and availability

Miniplant Availability

Improve your Availability and Reliability Assessment

How can model-based availability assessment be represented in models and knowledgebases in RiskSpectrum ModelBuilder and what types of results can be produced?

Read all about it in the document on the right. It proposes methods for validation models and explore possibilities for automatic search for design optima.
